Decoding Electrical Cable Specifications

Wire Gauge and Ampacity Explained

Most DIYers discover the hard way that wire gauge is not about thickness alone. It determines heat tolerance and current capacity. In South Africa, the electrical cable home depot stock often confuses shoppers with labels like 1.5 mm² or 2.5 mm². That metric measurement translates directly to ampacity. A 1.5 mm² cable carries about 15 amps, while 2.5 mm² handles 20 amps. Here is a quick reference for typical residential circuits:

1. 1.0 mm² for lighting circuits up to 10 amps.
2. 1.5 mm² for socket outlets up to 15 amps.
3. 2.5 mm² for stoves or geysers up to 20 amps.

But ambient temperature and installation method alter these figures significantly. I always check the SANS 10142 wiring code before trusting a label. Understanding this relationship prevents overheating and fires. The next time you browse a store, calculate your load first. That small step saves costly rewiring later!

Solid vs Stranded Conductors

A solid conductor is a single copper core. A stranded conductor is a bundle of fine wires. The choice changes how the cable behaves inside your wall. When I scan the electrical cable home depot shelves, both types sit side by side, yet they serve different masters. Solid wire holds its shape during installation for clean, permanent runs. Stranded wire bends with far less effort and tolerates movement.

Here is how they differ in practice:

• Solid conductor: stays put in terminals and conduit without creeping loose.
• Stranded conductor: handles vibration and repeated flexing without cracking.

Solid cores suit fixed wiring in conduit. Stranded cores suit appliance cords and switch gear. South African wiring boards usually specify solid for house circuits, but stranded appears where the line must flex.

Common Cable Types: NM-B, UF, THHN, and More

Inside your wall, the cable’s alphabet soup decides between a safe circuit and a fire risk. NM-B is the workhorse for dry indoor runs. UF shrugs off moisture when buried in the earth. THHN handles the heat inside conduit, letting you push higher ampacity in tight spaces. Each letter code tells you where that cable belongs. Get it wrong and you are betting against physics.

• NM-B: indoor, dry locations only
• UF: direct burial and wet areas
• THHN: conduit use, high heat tolerance

I have seen electricians grab the first roll off the rack. That mistake costs time and money. When you scan electrical cable home depot shelves, read the jacket printing carefully. South African installations often specify different variants, but the principle holds. Match insulation to the environment, not the bargain bin.

How to Locate Wiring Supplies at Home Improvement Stores

Store Layout and Aisle Locations

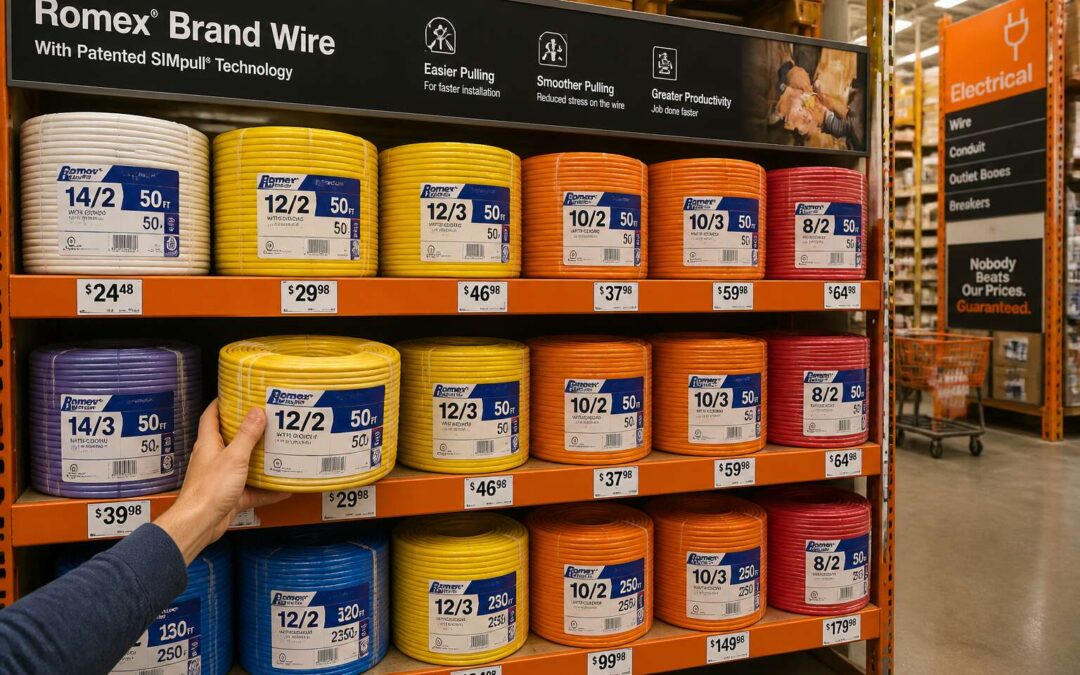

The warehouse floor hums with its own particular order. Most shoppers drift past the timber and paint, missing the electrical cable home depot toward the back. In South African hardware chains, the electrical department usually sits along the rear wall.

Follow the hanging signs that read “Electrical” or “Cables.” The copper spools rest on heavy wooden reels beside the fuse boxes and circuit breakers. I have walked into three branches this year, and each one placed the cable section near the trade counter.

• Cable reels sit on lower racks for easy rolling to the cutting station.
• Conduit and trunking line the adjacent aisle.
• The cutting counter holds a measuring wheel and a cable stripper.

The trade counter handles exact lengths. Staff at this electrical cable home depot will cut on request. The stock rotates weekly, so the aisle layout shifts. Check overhead racking for bulk rolls.

Online Ordering and In-Store Pickup Options

South African hardware retailers now let you order electrical cable home depot online. The catalogue shows branch stock, but the pickup counter holds your reel for two hours. I have used this service three times this month. Pay digitally and bring proof of purchase.

Some branches offer a drive-through lane. Others require the trade counter. Check the website for procedures!

• Verify cutting hours.
• Confirm pickup point matches the cable aisle.
• Bring ID for high-value orders.

The pickup desk sits near returns, not the electrical section. Staff retrieve your cut from the back, so you skip the queue.

Reading Product Labels and Packaging

Reading the jacket text saves you from a misstep. For any electrical cable home depot purchase, the printed label tells you more than the price sticker. Conductor size, insulation temperature rating, and voltage class are all there, but only if you know where to look. I rotate the drum to find the full spec.

Locating the actual product often means checking under the rack, because workers stack reels by number. The trade counter holds a catalogue for exact matches. Do not rely on the colour of the sheathing alone.

• Conductor count and gauge, such as 3×2.5mm
• Voltage rating, usually 300/500V
• Jacket material and temperature limit

Those three points on the packaging determine compatibility. The rest of the label covers standards and length, which matter for the project.

Comparing Brand Options for Quality and Price

Finding the right electrical cable home depot selection takes more than grabbing the first reel. I usually start by locating the branded bays near the back of the electrical aisle, where the reputable manufacturers sit side by side with budget imports. Compare the copper fill and insulation flexibility between them; cheap cable often feels stiff and thin.

• Verified SABS approval versus generic certification
• Copper strand count and gauge accuracy
• Warranty and return policy from the retailer

Price differences matter, but only after quality holds up. I have seen homeowners save a few rand on electrical cable home depot offers, then rewire twice. The better brand should feel heavier per metre, and the sheath should resist kinking. That tactile check beats any marketing claim.

Matching Cable to Your Project Needs

Indoor Wiring for Outlets and Lighting

Selecting the right cable for indoor outlets and lighting demands attention to circuit rating and environmental conditions. A 15 amp circuit for general lighting uses 14 gauge wire, while kitchen outlets on 20 amp circuits require 12 gauge. The ambient temperature and presence of insulation in walls affect the cable’s derating factor. For most homes, a standard NM cable with a PVC jacket works well.

Your project’s length also matters. Long runs to distant rooms can cause voltage drop, which reduces appliance performance. Measuring the exact path from the breaker panel to each junction box saves time and material. When you need electrical cable home depot, you can find both bulk rolls and ready to use lengths.

The installation location determines the correct cable:

• Outlets in finished walls use NM-B cable.
• Lighting fixtures in attic spaces require UF cable.
• Damp areas like basements need moisture resistant insulation.

Outdoor and Underground Applications

Outdoor circuits face conditions that interior wiring never encounters. Soil moisture, seasonal temperature swings, and ultraviolet exposure degrade insulation at different rates. South African gardens often contain sharp stones and reactive clay, so the physical route matters as much as the conductor size. A cable that performs perfectly inside a ceiling void can fail within years when buried directly.

When I evaluate an electrical cable home depot for outdoor work, I inspect the trench before anything else. The soil type, expected water flow, and future landscaping plans all carry weight. A few questions guide the decision:

• What is the required burial depth in your municipality?
• Do tree roots or landscaping tools threaten the run?
• Will the cable lie in standing water during rainy seasons?

Each answer determines whether direct burial cable suffices or conduit becomes necessary. Underground runs need slack at every junction to accommodate ground movement. Careful selection now prevents a costly dig later.

Service Entrance and Panel Wiring

The quiet hum of your distribution board starts at the street. That incoming feed demands a cable built for constant duty. When I search for an electrical cable home depot for service entrance work, I look past the spool and focus on the termination points. The meter box and main breaker have specific lug sizes and bending radius requirements.

A service entrance conductor carries the full load of a property. It must endure heat, moisture, and occasional physical knocks. Panel wiring inside the board is equally strict. The neutral and earth bars require clean, tight connections without exposed copper. I often consider these points when picking a reel:

• Conductor count for single phase versus three phase supply
• Insulation rating for the local utility’s voltage
• Mechanical strength for overhead or underground feeds

That same electrical cable home depot might stock the flexible cord for a generator changeover switch, but the fixed wiring needs a different class. The difference shows in the jacket and the stranding.

Low-Voltage and Landscape Cable

Low voltage landscape cable carries a humble current, yet it fails with dramatic ease when paired with the wrong conditions. South African gardens present a particular enemy: the sun. A standard PVC jacket will crack after two summers of ultraviolet exposure. The cable must wear an outdoor-rated sheath.

When I browse electrical cable home depot for these runs, I calculate the distance from transformer to the farthest fitting. Voltage drop matters more than the lamp rating. A 12 AWG serves a modest 10 metre run, but a 30 metre sweep demands 10 AWG. The spool label states whether the conductor is rated for direct burial or must rest inside conduit.

Check these points before you buy:

• The transformer output voltage and the cable insulation rating
• The soil type and whether stones may press into the jacket
• Whether the path crosses paving or a driveway, requiring conduit

That electrical cable home depot source will stock both, but the distinction between a landscape cable and a utility cord is absolute.

Specialty Cables for Appliances and HVAC

Appliance cables hide their dangers until the moment they betray you. A tumble dryer pulling 30 amps through a light-duty cord will melt insulation from within. When I search electrical cable home depot for a range or oven circuit, I check the nameplate amperage, then match it to a 90 degree Celsius cable. HVAC compressors demand more respect. They draw locked-rotor current, a surge that tests every connection.

Specialty cable for these loads uses a thicker conductor and a tougher jacket. For a heat pump, a manufacturer may specify a cable type. That specification overrides general advice. The electrical cable home depot aisle holds options that look identical, but the conductor material and insulation class differ. Use the wrong one and you own a fire risk.

• Appliance voltage and phase are the first checks.
• Low-voltage thermostat wiring stays separate from power.
• The HVAC unit may need a disconnect within sight.

Electrical Safety, Codes, and Permits

NEC Code Requirements for Cable Installation

A single overheated connection can ignite timber framing, yet the real protection lies in codes you never read. South Africa’s SANS 10142 sets the baseline, while the NEC offers parallel guidance for imported components. Before any cable enters your wall, an electrical contractor must obtain a permit and schedule inspection.

The rules govern strapping intervals, derating factors, and the distance between clamps and junction boxes. Some municipalities require separate permits for underground runs. Others mandate specific burial depths.

• Protecting exposed cables within 1.4 metres of the floor
• Applying anti-oxidant compound to aluminium conductors
• Labelling the panel schedule to match every circuit

Your electrical cable home depot purchase is just the first step. The permit, the inspection, and the certificate of compliance give your installation legal standing. Skip them and your insurance may not cover a fault!

When to Hire a Licensed Electrician

The difference between a working outlet and a house fire often comes down to who tightened the last screw. Your electrical cable home depot purchase is a milestone, but the installation carries the actual risk. South African regulations demand more than good intentions. They demand evidence.

You can legally replace a socket or install a light fitting yourself, following SANS 10142. Anything beyond that, from a new circuit to a distribution board upgrade, requires a licensed electrician. They manage the steps most homeowners never see:

• Issuing the certificate of compliance your insurer will request later
• Calculating derating factors for cables in insulation
• Arranging municipal inspection before the walls close up

Confidence does not replace liability cover. A licensed electrician carries insurance and understands the bylaws that vary between municipalities. That overhead span from your electrical cable home depot run will not hold if the anchoring is wrong. The signed certificate of compliance is the only proof the installation meets the code.

Avoiding Common DIY Mistakes

Your electrical cable home depot purchase arrives with no instruction manual for the municipal inspector. That is the point. South African wiring rules do not care how confident you feel. They care about the permit, the certificate, and the physical evidence of a safe installation. Common DIY mistakes are predictable: mixing cable types, burying junction boxes, and sharing neutral wires between circuits.

Inspectors look for:

• Correct breaker ratings
• Proper earthing continuity
• No exposed live terminals

None of that appears on your receipt. The electrical cable home depot run is only the beginning. The local authority’s sign off is what protects your household and your insurance policy.

Understanding Permit Requirements for Home Rewiring

In South Africa, a home rewire begins with a permit, not a drill. The electrical cable home depot purchase is the visible part of a hidden legal structure. The municipality wants proof of competence. Your inspector will check the earth leakage unit, the breaker ratings, and the conductor sizes. They will look for physical evidence of compliance.

Without the permit, your insurance may become a polite refusal. The process is straightforward: apply, pay the fee, schedule the inspection. Then the real work starts. One small omission, a missing bonding clamp, can stop the project. The certificate of compliance is your reward. Keep it safe! The next buyer will ask for it.

Essential Tools and Installation Tips

Stripping, Cutting, and Connecting Cable

A surprising number of electrical failures trace back to improper cable preparation. The connection point is where performance degrades, and heat builds. Before you start, gather your tools to avoid a frustrating interruption. A manual cable stripper is often more precise than a utility knife for jacket removal.

Essential gear for clean work:
– Wire strippers for specific gauge sizes
– Lineman’s pliers for twisting and pulling
– A quality cable ripper for NM-B jackets
– A voltage tester for safety confirmation

Stripping requires a delicate touch. Score the outer jacket lengthwise, then peel it away to expose the conductors. Avoid nicking the copper underneath, as scoring creates a stress point that can snap later. When cutting multiple conductors, use a single, firm motion with your pliers. Ragged ends make connections unreliable.

For connections, match the strip length to the terminal depth. Exposed wire is a hazard; insufficient wire means a poor grip. When you purchase electrical cable home depot, remember that the tool aisle carries the same crucial accessories. Solid connections demand clean, straight cuts and properly sized connectors. Torque matters, so use a screwdriver with the right fit. A loose connection is a primary cause of circuit failure.

Cable Supports and Stapling Guidelines

One loose staple can undo an entire day of careful wiring. The staple is not decoration; it is the difference between a tidy wall and a sagging hazard. When you buy electrical cable home depot, grab a box of code-compliant staples alongside the wire. Match the fastener to the cable’s flat profile. Never use a round staple that crushes the jacket.

A common error is over-driving the staple into the framing. The staple should hold the cable firmly but remain free to move slightly with temperature changes. Space supports at 1.2 meters for horizontal runs and 1.5 meters inside wall cavities.

Stapling guidelines that matter:

• Use insulated staples for NM-B cable.
• Keep staples at least 30 centimetres from junction boxes.
• Avoid stacking multiple cables under one staple.

Check local regulations for exact spacing. The right support turns a loose installation into a permanent one.

Running Cable Through Walls and Conduit

Running cable through walls and conduit demands the right tools. A fish tape pulls wires through tight bends without damaging the insulation. A conduit reamer cleans burrs after cutting. Without it, those sharp edges will shave the jacket during installation.

In my experience, South African walls come in varied forms. Masonry, cavity brick, and timber frames each demand different drill bits. When you buy electrical cable home depot, consider picking up a cable roller for long draws. It protects the cable at the entry point. Keep spare electrical cable home depot stock in the van for obstacles.

Here is a practical sequence for a clean installation:

• Pull a sturdy string through the conduit before running the cable.
• Use pulling lubricant for runs longer than ten metres.
• Leave a service loop at each end for future terminations.

The drill bit should match the material. Masonry needs a carbide-tipped bit. Timber needs a standard spur bit. The wrong choice produces tear-out and friction.

Testing and Verifying Your Work

Testing happens before the walls close, not after. A non-contact voltage tester confirms a circuit is dead, but it won’t catch loose neutrals or reversed polarity. A multimeter reads continuity. A plug tester verifies outlet wiring in seconds. These tools separate a safe installation from a dangerous one.

When I stock up on electrical cable home depot, I always add a few spare labels and a marker. Every cable gets identified at both ends.

• Tighten every terminal screw until the conductor sits snug.
• Inspect insulation for scrapes from the fish tape.
• Measure ground continuity at every junction.

That routine takes ten minutes. Reopening a finished wall takes days.
